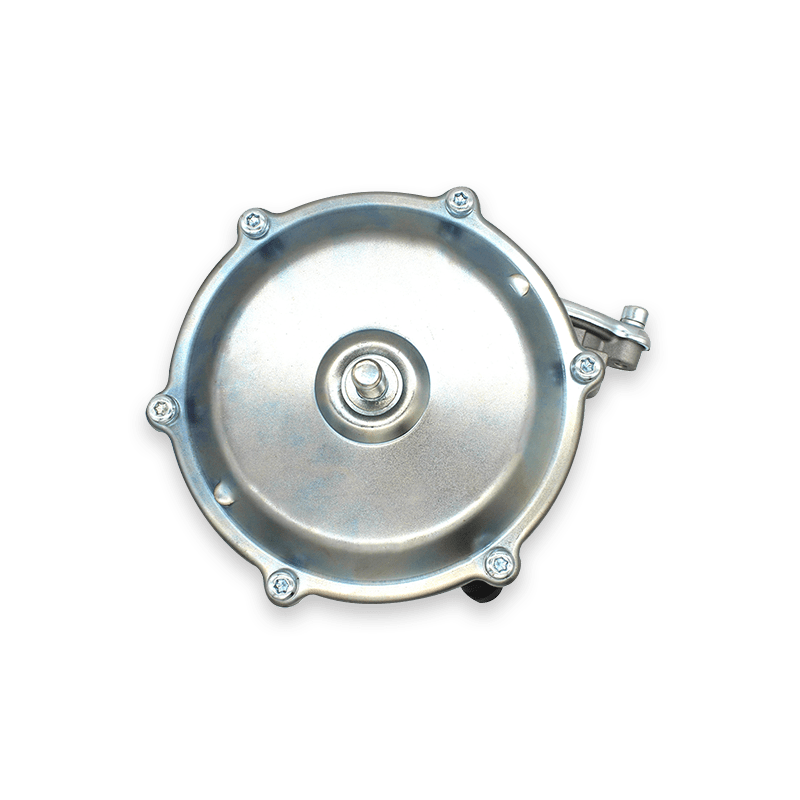

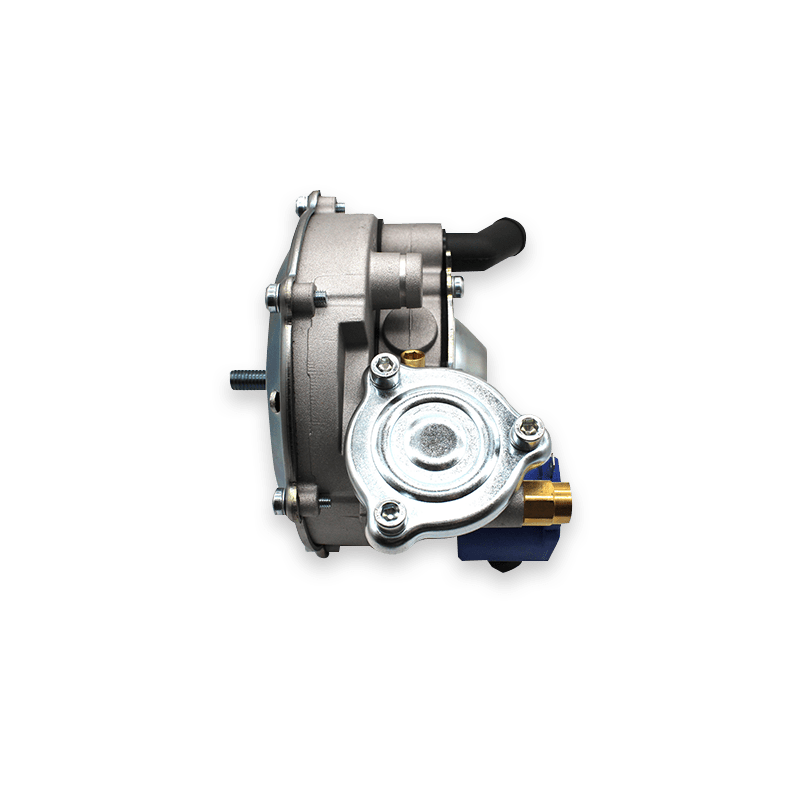

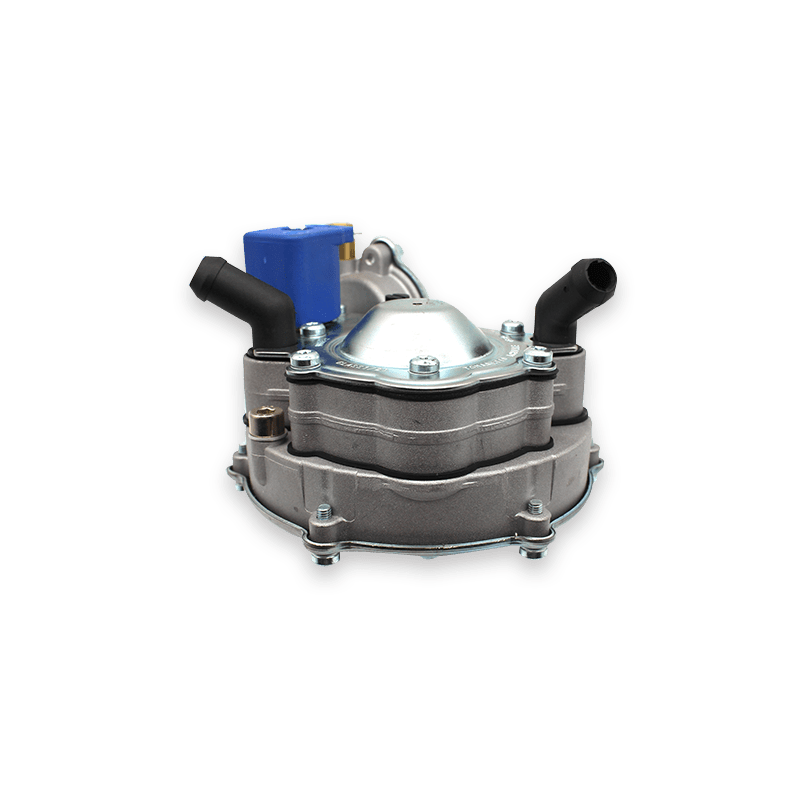

Autogas Conversion Kit Single Point AT07 LPG Reducer for Mixer System

Product properties for LPG conversion kits :

1.Meet the E4 standard.

2.Applying to liquefied petroleum gas .

3.Applying to car, bus and truck (CNG, LNG and LPG fuel system).

4.High quality can be comparable with the Italy brand “RAIL” , “AEB” or “BRC”.

5.Each product must be tested in the process of producing, completion, and delivery.

6.The types include 3-cylinders, 4-cylinders, 6-cylinders and many others.

7.Single version with a short stroke, gas injection can be controlled precisely.

8.Meet National IV emission standard, good fuel economy.

9.The unique structure, convenient to clean and maintain, accessory parts can be changed separately, low repairing cost.

10.OEM/ODM Service and Buyer Label.

E-mail : [email protected] Phone : +86 135 1130 2945

SPECIFICATIONS FOR LN AT07 Reducer
Product details	Regulated media	LPG
	Material	Die cast aluminum body
	Dimension	150x160x110 mm
	GW/NW	1.7/1.8KG
Main performance parameters	Maximum input pressure	22000KPa(220Bbar)
	Maximum output pressure	depending on the mixer
	Maximum flow	More than15Nm3/h
	Working pressure	Less than20Mpa (200bar)
	Working voltage	DC12V
	Coil Power	11 W (solenoid)
	Power Capacity:	Up to 100 HP/200 HP
	Inlet connection	Φ6 mm pipe, M10x1
	Out connection	Φ20 mm
	Max. Flow:	9 ±1 m3/h
Package details	10 Pieces / carton	18 KG	0.055 CBM
	20 Pieces / carton	36 KG	0.011 CBM
