High Quality carbon steel CNG High Pressure Fuel Line Pipe lpg tube

Jiaxing Lineng Autogas Equipment Co., Ltd.

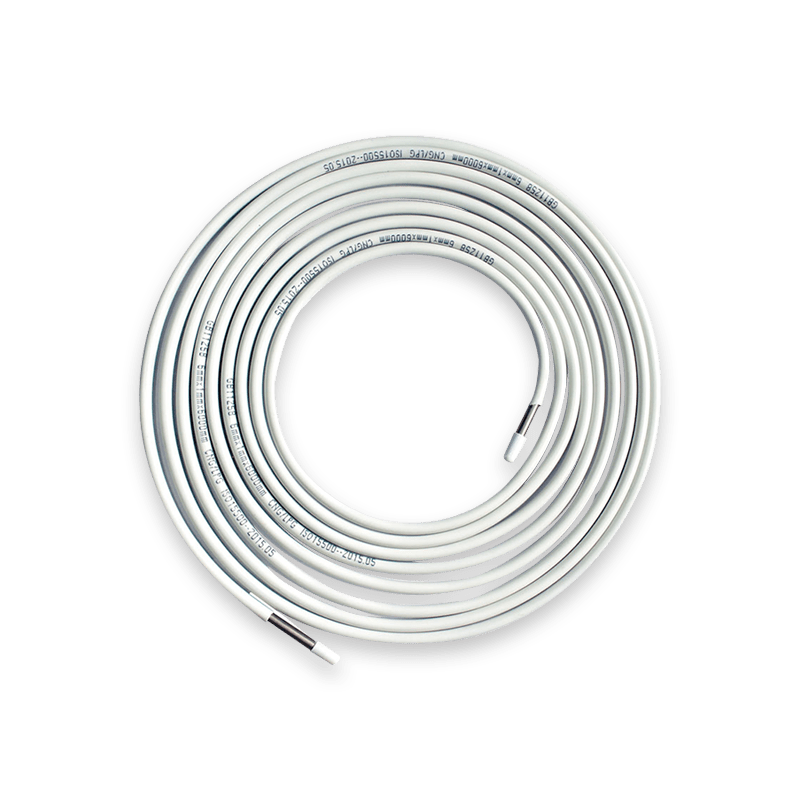

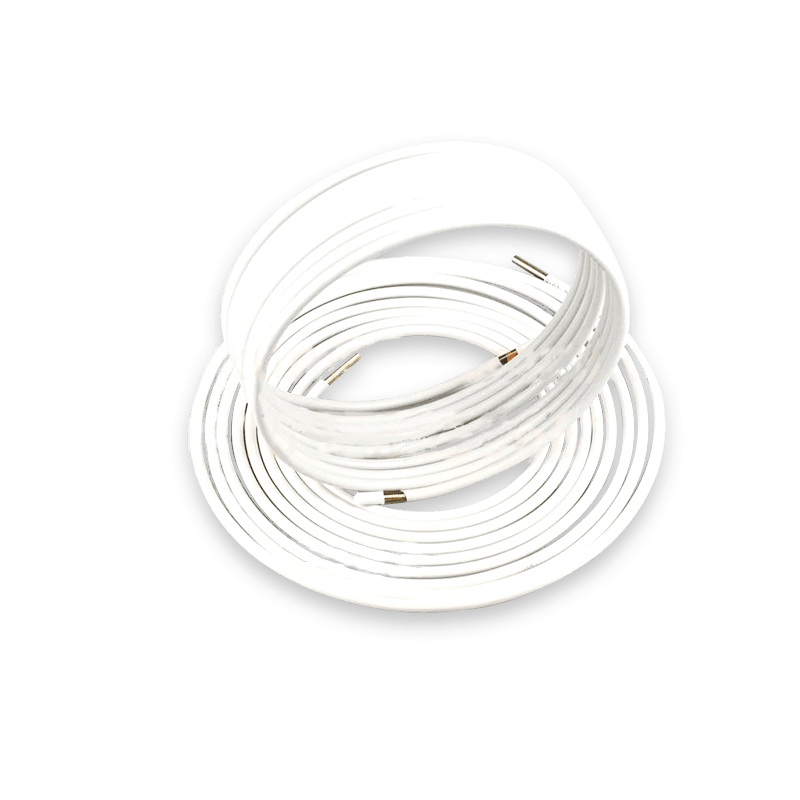

CNG LPG high pressure pipe 6mm*1mm*6M for automobile and refrigeration industry

PVC covered with plastic, high pressure resistant steel pipe 6 * 1. It can be cut into 5.2m, 5.5m, 6m, 8m, etc. according to requirements.

High Quality CNG High Pressure Fuel Line Pipe

E-mail : [email protected] Phone : +86 135 1130 2945

Product Details

Product Name	High Quality CNG High Pressure Fuel Line Pipe
Standard	YB/T4164 (Stricter than ASTM A254 and SAE J527)
Out Diameter	3.17mm~15mm
Wall Thickness	0.5mm~1.0mm
Length	Cut to length, Any length as your requirements
Color	White or black
Material	Low Carbon Steel/BHG2
Usage	For automobile and refrigeration industry
Packing	Coils or Bundles ,then in pallets or wooden boxes
Packing	Water-proof packing, using plastic film for inner package , and plastic woven bag for outside package
Surface Treatment	Galvanization: white zinc, Olive-drab zinc, Celadon zinc, colored zinc; PVF coated

Basic Information 1

1.standard and Material: ISO15500, BHG-1 or as the customers' requirement to choose the material

2.Treatment: Soft annealed, hot dipped galvanized; Air-tight test 30MPa

3.Product usage: CNG high pressure tube is used for LPG , CNG sequential injection system conversion kits.

4.Tube surface with 5-8 um zinc coated, which can keep 72-100 hour salt spray Test without red rust.

Basic Information 2

5. Tube surface with 5-8 um zinc coated, which can keep 72-100 hour salt spray Test without red rust.
6. Both ends of tube without rag, corner processing, smooth, absence of istortion.
7. Steel tube is welding tube with annealing treatment before zinc plating. Inside of tube
